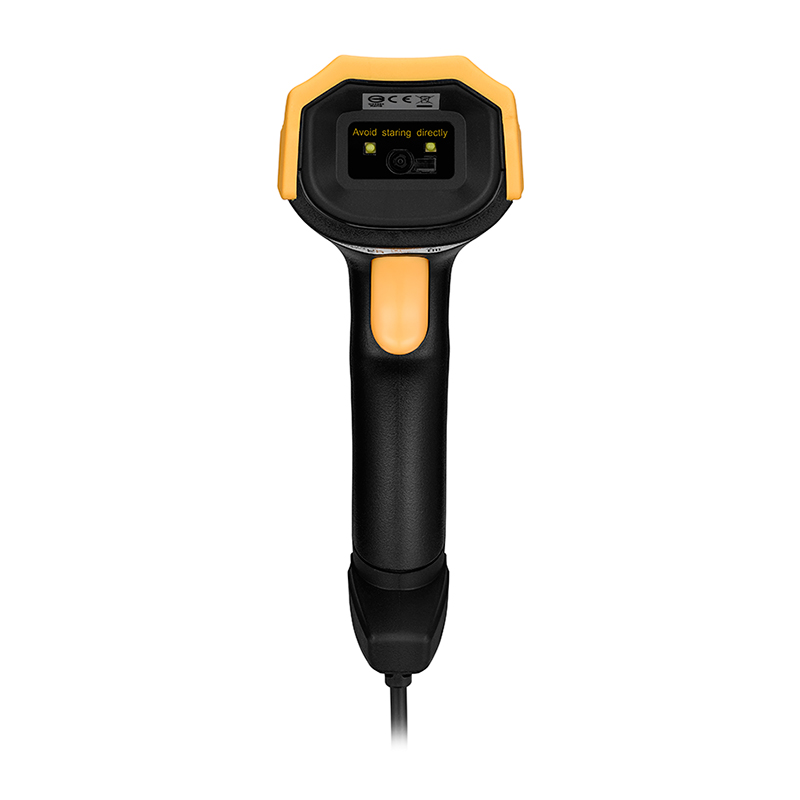

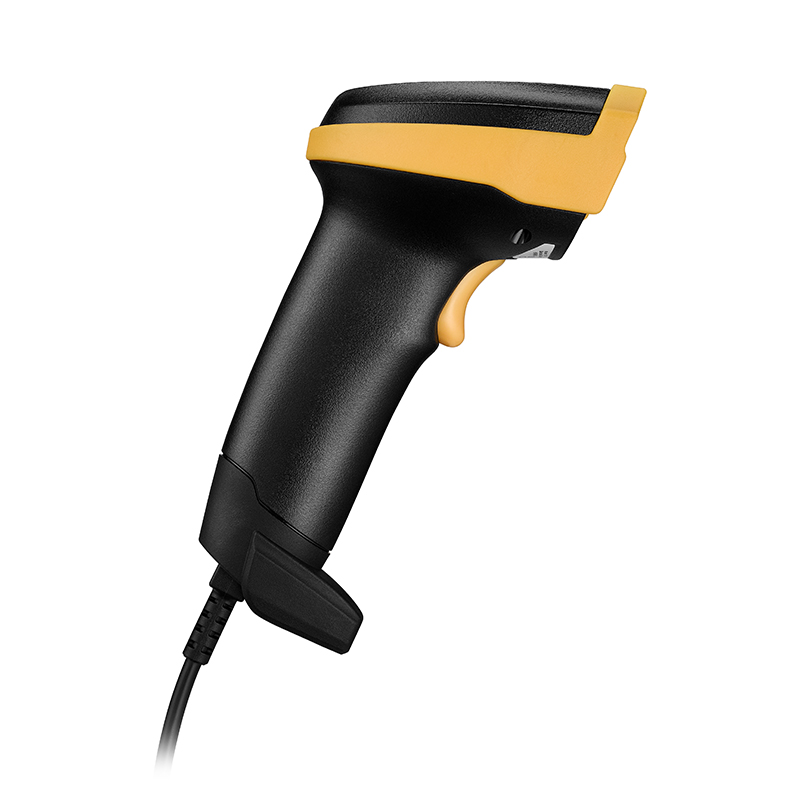

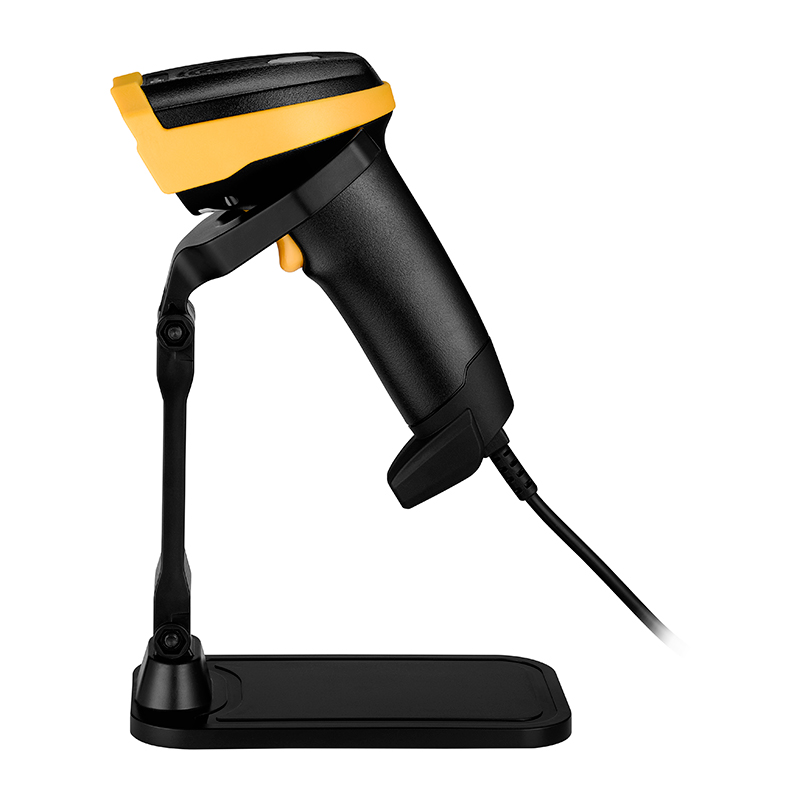

CipherLab 2506 DPM Scanner
Engineered for decoding the most challenging direct part markings, the CipherLab 2506 DPM Scanner delivers high accuracy, lightweight ergonomics, and rapid plug-and-play deployment. With advanced 1.3MP imaging, robust industrial protection, and ESD-safe construction, it ensures reliable traceability across demanding production and repair environments.
Key Features
Direct Part Mark (DPM) Decoding
The 2506 DPM Scanner uses a 1.3MP CMOS sensor to decode low-contrast and complex DPM marks, including laser-etched and dot-peen codes.
ESD-Protected Housing
The CipherLab 2506 DPM scanner features specialized ESD-safe construction, making it suitable for static-sensitive assembly environments.
Durable Build for Industrial Use
With an IP54 rating and 1.5-meter drop resistance, the 2506 scanner is rugged and withstands dust, splashes, and accidental impacts.
Easy Plug-and-Play Pairing
The scanner supports USB and RS232 plug-and-play interfaces for immediate workstation integration with no complex configuration
Technical Specifications
- Optical Sensor: 1.3MP CMOS (1280 x 1024 pixels)
- Light Source: White illumination
- Resolution:
- 1D: 3 mil Code 39 (PCS 0.9)
- 2D: 5 mil DataMatrix (PCS 0.9)
- Depth of Field: 250 mm @ 20 mil Code 39 (PCS 0.9)
- Scanning Angle: Skew ±60°, Pitch ±60°, Roll 360 degrees
- Minimum PCS: 20 percent
- Scan Rate: 65 scans per second
- Ambient Illumination: Dark and indoor lighting environments
- Barcodes Supported:
- 1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93, Interleaved 2 of 5
- 2D: QR, Data Matrix, Micro QR, Aztec, Hanxin, and DPM barcodes
- Programmable Features: Interface selection, symbology configuration
Performance
- Optical Sensor: 1.3MP CMOS (1280 x 1024 pixels)
- Light Source: White illumination
- Resolution:
- 1D: 3 mil Code 39 (PCS 0.9)
- 2D: 5 mil DataMatrix (PCS 0.9)
- Scanning Angle: Skew ±60°, Pitch ±60°, Roll 360 degrees
- Minimum PCS: 20 percent
- Scan Rate: 65 scans per second
- Ambient Illumination: Dark and indoor lighting environments
- Barcodes Supported:
- 1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93, Interleaved 2 of 5
- 2D: QR, Data Matrix, Micro QR, Aztec, Hanxin, and DPM barcodes
- Programmable Features: Interface selection, symbology configuration
Tailored for Precision-Critical Production and Repair
Manufacturing & Production
Achieve accurate first-time reads on low-contrast DPM codes for component-level traceability.
Electronics Repair
Decode etched and dot-peen identifiers for high quality, serial-level repair traceability.
Component Assembly
Integrate rapid plug-and-play scanning into assembly workstations to streamline workflows.
What Our Customers
are Saying
Delmon Solutions has been instrumental in modernizing our inventory and asset management workflows. Their rugged barcode scanners and mobile computers have significantly reduced manual errors and improved traceability across our production lines. The team’s deep understanding of manufacturing needs sets them apart as a technology partner we can rely on.
We partnered with Delmon Solutions to deploy their warehouse management system along with industrial printers and scanners. The implementation was smooth, and the impact was immediate—our picking accuracy and dispatch speed have improved remarkably. Their hardware recommendations, especially CipherLab devices, were spot on for our high-volume environment.
Efficiency is critical in logistics, and Delmon Solutions has helped us achieve it. From handheld scanners to robust asset tracking software, their solutions have streamlined our hub operations and provided real-time visibility into shipments. We appreciate their proactive support and commitment to our success."
Why Choose the CipherLab 2506 DPM Scanner?
The CipherLab 2506 DPM Scanner offers precise DPM decoding, an ergonomic lightweight design, durable industrial protection, and seamless workstation integration. It is engineered for operators who require consistent accuracy and dependable performance in demanding manufacturing and repair environments.
