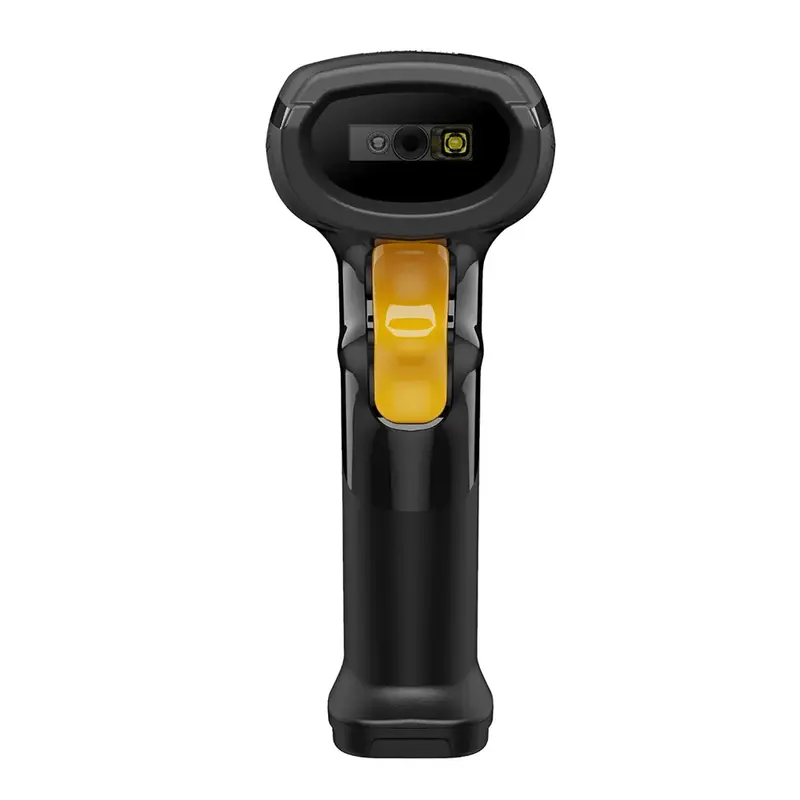

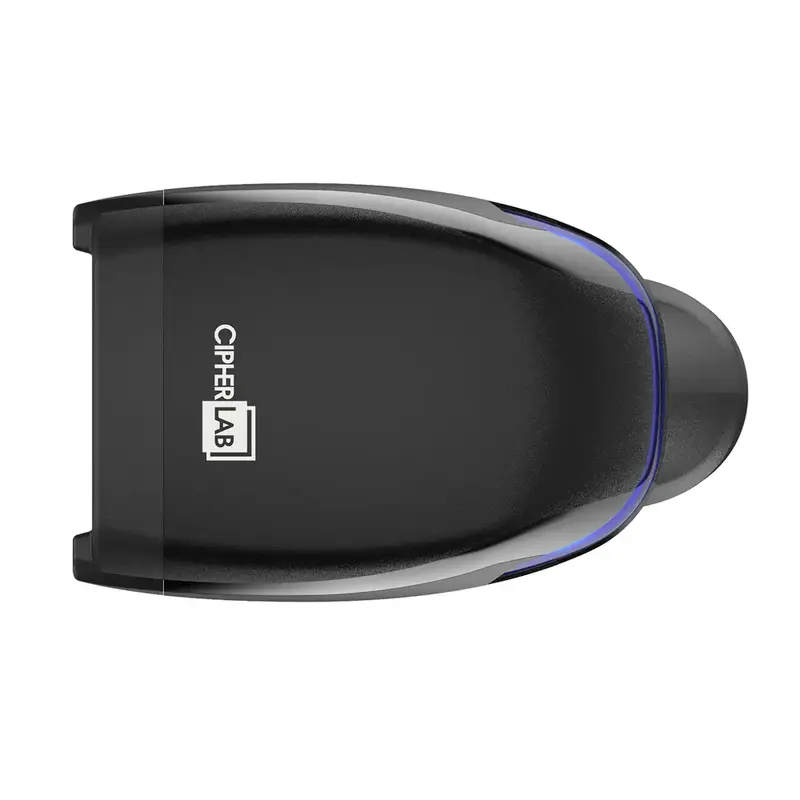

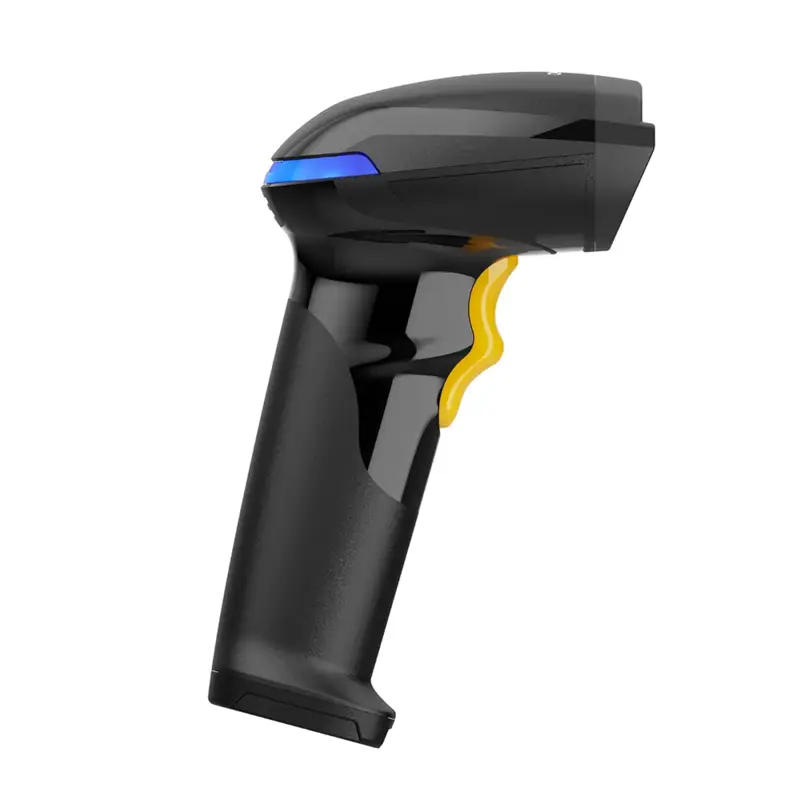

CipherLab 1204 Series Handheld Scanner
The CipherLab 1204 Series handheld scanner is built for teams that demand durability, accuracy, and all-day comfort. This corded 2D handheld scanner supports a wide variety of 1D and 2D barcodes on paper and digital screens—making it a perfect fit for retail, healthcare, hospitality, and assembly line environments. Designed with ergonomics in mind and protected with a rugged TPU guard, it ensures fatigue-free operation and long-term reliability in high-traffic areas.
Key Features
Ergonomic & Comfortable Design
A tapered handle, raised thumb rest, and two-finger trigger reduce hand fatigue and ensure natural scanning motions.
Tough with TPU Protection
Durable TPU scan lens guard protects the engine from drops and impacts, extending device life in demanding settings.
Easy Configuration with ScanMaster
Customize everything from scanning modes to symbologies with CipherLab ScanMaster software for a tailored setup.
Hands-Free Scanning

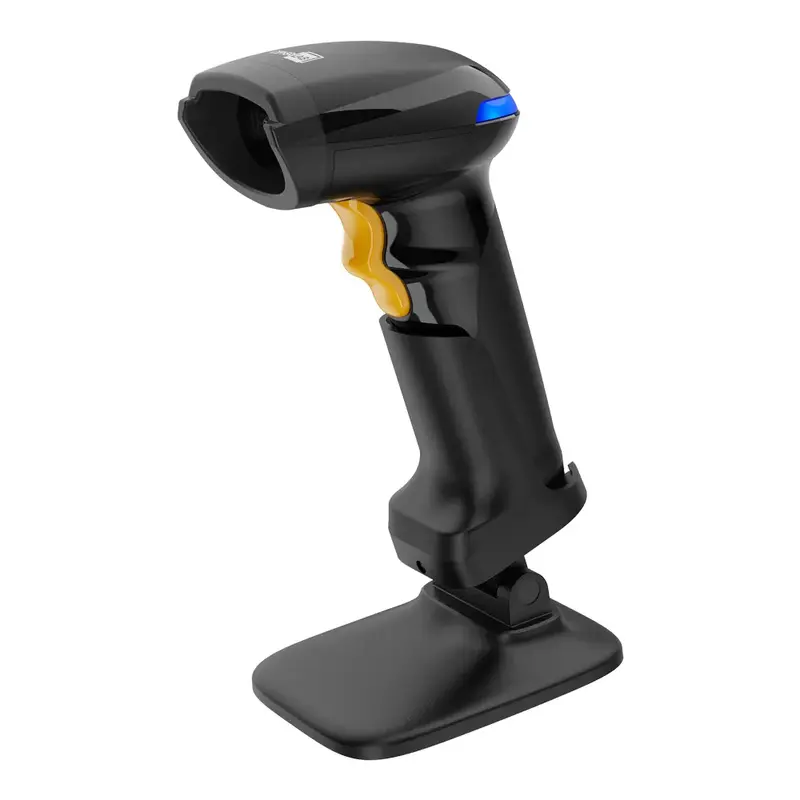

Supports presentation mode and comes with a flexible stand for efficient, hands-free workflows.
Technical Specifications
- Scanner Type: 2D Corded Handheld
- Sensor: CCD Linear Sensor, 640 x 480 pixels
- Light Source: White LED
- Resolution: 3 mil (1D), 5 mil (2D)
- Depth of Field:
o Code 39 4 mil: 4–7 cm
o Code 128 4 mil: 4–15 cm
o UPCA 13 mil: 5–34 cm
o QR Code 6 mil: 5–8 cm
o QR Code 15 mil: 2–22 cm - Scanning Angle: Pitch ±65°, Skew ±65°
- Minimum PCS: 25%
- Scan Rate: 60 scans/sec
- Warranty: 1 Year
- Hands-Free Scanning: Presentation mode
- Barcodes Supported:
o 1D: Codabar, Code11, Code39, Code128, UPC, EAN, GS1 DataBar, etc.
o 2D: PDF417, DataMatrix, QR code, Aztec, Micro QR, MicroPDF417 - Programmable Features: Interface selection, symbology configuration
- Dimensions (L x W x H): 166.6 x 86.7 x 64.8 mm
- Weight: 142g (without cable)
- Power Consumption:
o Operating: 270mA @ 5VDC
o Standby: 100mA @ 5VDC - Durability:
o Impact Resistance: 1.5m
o Ingress Protection: IP42
o ESD: ±8kV contact / ±15kV air - Operating Temp: 0°C to 50°C
- Storage Temp: -20°C to 60°C
- Humidity: 10% to 90% (operating)
- Certifications: BSMI, CE, FCC, RoHS
Included Accessories
o USB Cable
o Adjustable Stand
Engineered for Routine Precision
Retail

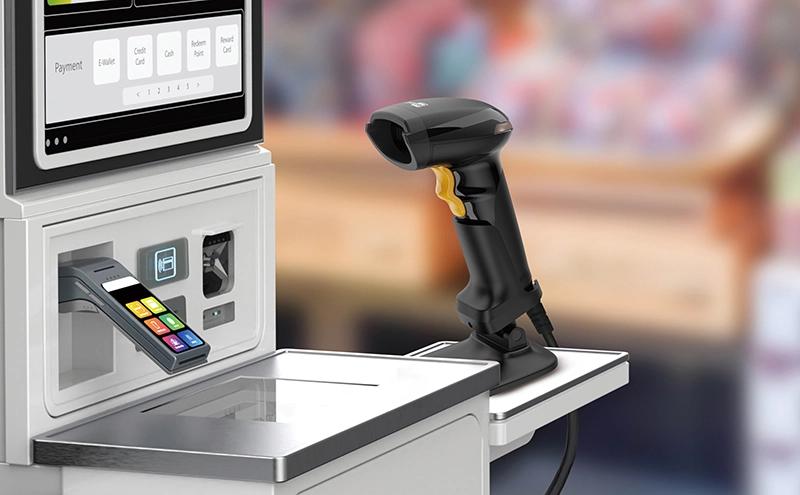

Scan products, coupons, and mobile screens at checkout or for inventory with ease.
Healthcare
Capture barcodes on medicine packs and wristbands while maintaining accuracy and hygiene.
Assembly Line
Track components and parts in fast-moving production environments with reliable scanning.
What Our Customers
are Saying
Delmon Solutions has been instrumental in modernizing our inventory and asset management workflows. Their rugged barcode scanners and mobile computers have significantly reduced manual errors and improved traceability across our production lines. The team’s deep understanding of manufacturing needs sets them apart as a technology partner we can rely on.
We partnered with Delmon Solutions to deploy their warehouse management system along with industrial printers and scanners. The implementation was smooth, and the impact was immediate—our picking accuracy and dispatch speed have improved remarkably. Their hardware recommendations, especially CipherLab devices, were spot on for our high-volume environment.
Efficiency is critical in logistics, and Delmon Solutions has helped us achieve it. From handheld scanners to robust asset tracking software, their solutions have streamlined our hub operations and provided real-time visibility into shipments. We appreciate their proactive support and commitment to our success."
Why Choose the CipherLab 1204 Series handheld scanner ?
The CipherLab 1204 scanner blends comfort, scanning performance, and ruggedness into one reliable barcode scanner – offering exceptional value for businesses that rely on precision every day.
