Dimension Smarter in Real Time

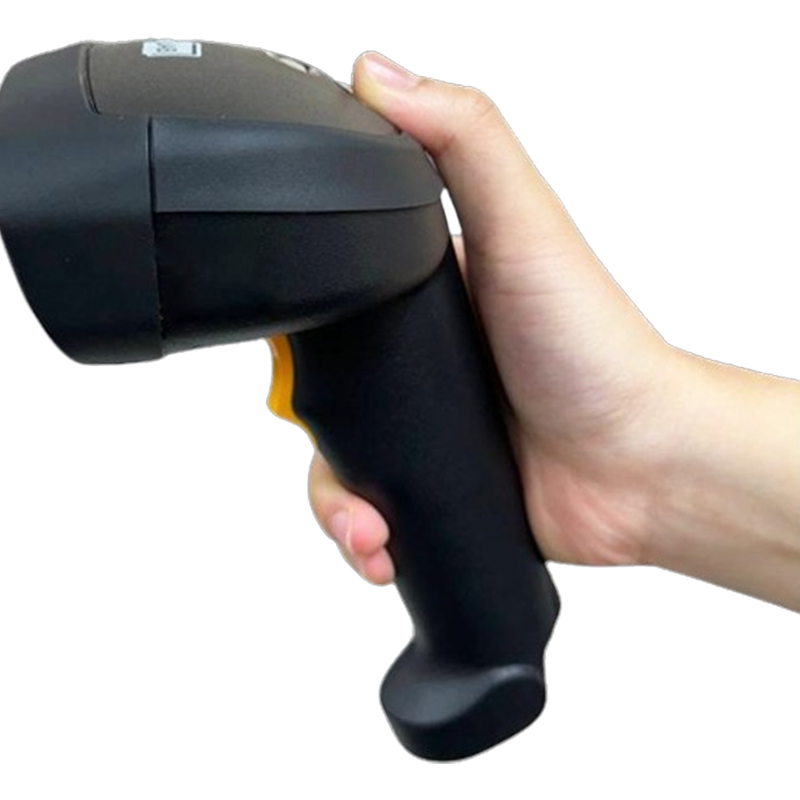

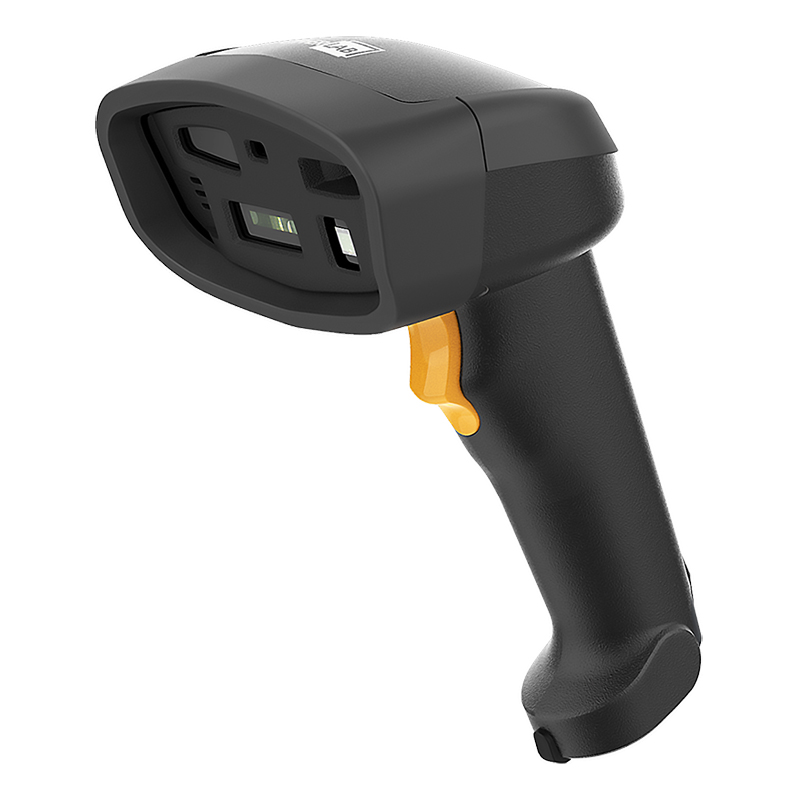

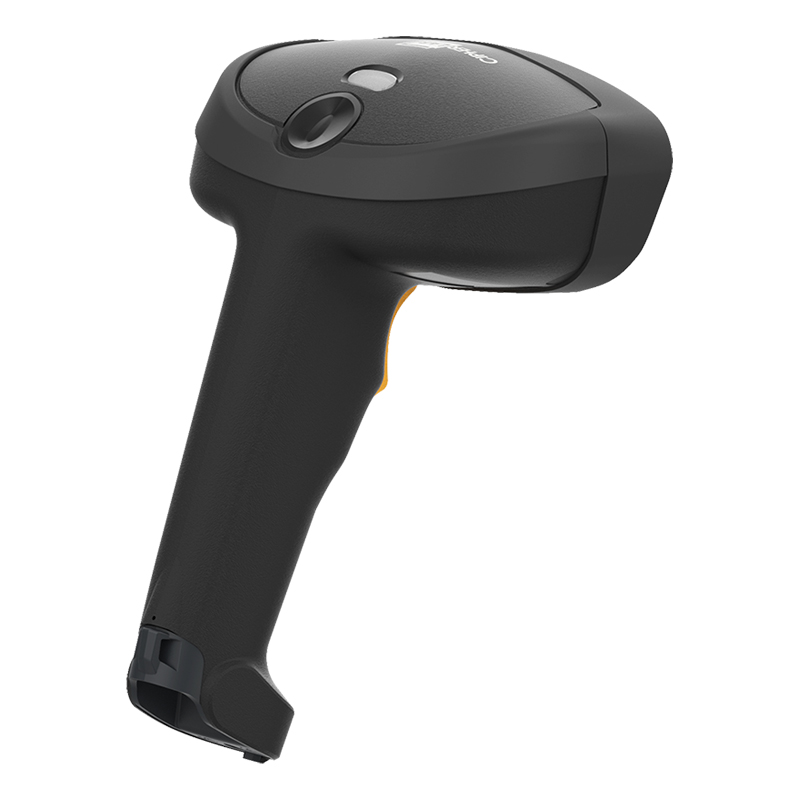

The CipherLab 2565 3D Parcel Dimensioner revolutionizes how shippers, retailers, and warehouse operators measure packages. This handheld, portable device uses structured light and laser-guided aiming to capture accurate 3D measurements in under 1 second – even for irregular-shaped parcels. With seamless Bluetooth integration to CipherLab mobile computers, the 2565 accelerates workflows, minimizes disputes, and ensures revenue protection. Designed for logistics pickup, warehouse operations, and drop-off locations, the 2565 replaces manual tape measurements with reliable, real-time data—making it a smarter tool for modern operations.
Key Features
One-Second 3D Measurements
Capture length, width, and height instantly for both cuboid and irregular-shaped objects with < ±1cm deviation accuracy.
Capture On the Go
Designed for doorstep pickups, shipping hubs, parcel drop-offs, and workstations, the 2565 measures objects placed on the ground or tabletop with ease.
Long-Lasting Battery Life

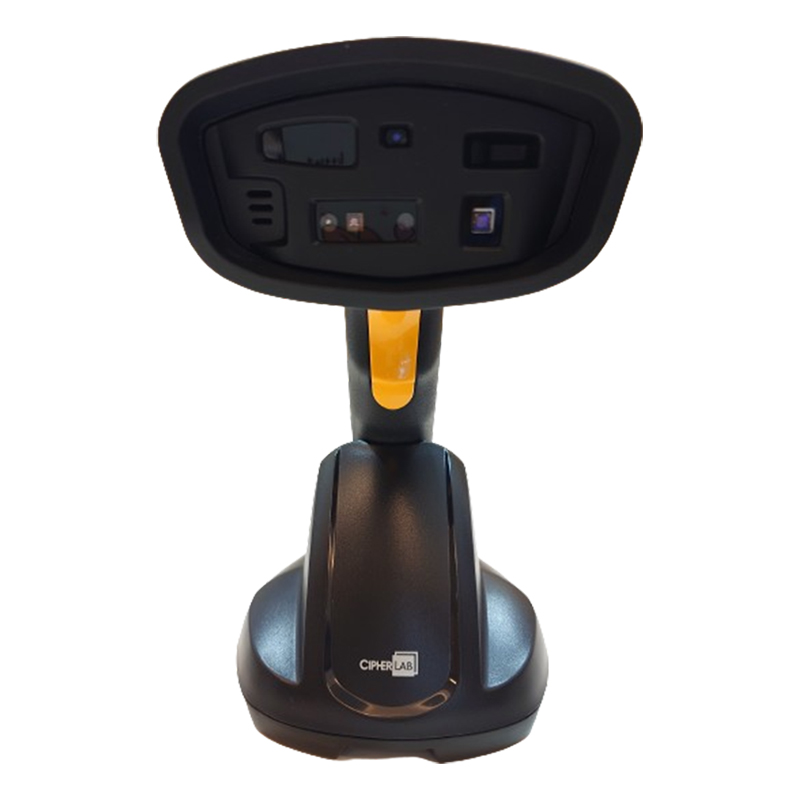

Measure up to 3,000 parcels per charge with its 3350mAh battery. Use the cradle for convenient charging between tasks to extend operation beyond 8 hours.
Bluetooth Pairing with CipherLab Devices
Easily pair the 2565 to RS35/RS36 mobile computers via QR scan, and transfer data directly into your workflow apps through DimenMobile.
Optimize Space & Revenue
Minimize packaging waste, optimize warehouse space, and prevent billing errors by ensuring accurate item dimensions.
Smart Aimer & Indicators
Laser-guided aimer, audible beeps, and color LEDs provide feedback for quick and confident measurements, even in busy environments.
Technical Specifications
- Measurement Type: 3D (cuboid and irregular objects)
- Measurement Time: <1 second
- Accuracy: ±1cm
- Min Object Size: 10cm cube (3.94”)
- Max Object Size: 60cm cube (23.6”), up to 90cm for long shapes
- Field of View: 50° (H) / 74° (V)
- Measurement Surface Compatibility: All opaque packaging (excludes
black/glossy/transparent surfaces) - Feedback: LED indicators (Green, Red, Blue) + Audible beep
- Certifications: CE, FCC, LVD, OIML/MID
- Sealing: IP54
- Operating Temp: 0°C to 40°C
- Storage Temp: -20°C to 60°C
- Weight:
o Device: 340g
o On Cradle: 550g - Battery: Li-ion 3.6V / 3350mAh
o Reads per charge: ~3,000
o Recharge time: 2.5–6 hours - Bluetooth: v5.2, up to 80m (line-of-sight)
Software:
o Config Tool: DimenMaster o Data Viewer: DimenMobile
o SDK: Communication command protocolDimensions (W x D x H):
o Device: 120 x 83 x 196.7 mm
o On Cradle: 120 x 137 x 204.4 mm
Engineered for Real-Time Dimensioning
Logistics (Pickup & Drop Off)
Enable fast, accurate measurements in field and station locations for shipping validation and billing accuracy.
Warehousing
Enhance space planning and load optimization with real-time parcel data, especially for irregular stock or returned goods.
Retail
Use at fulfillment centers or reverse logistics hubs for instant dimension capture—especially during high-volume eCommerce periods.
Manufacturing
Quickly validate component or package sizes to reduce shipping costs and ensure proper packaging dimensions.
What Our Customers
are Saying
Delmon Solutions has been instrumental in modernizing our inventory and asset management workflows. Their rugged barcode scanners and mobile computers have significantly reduced manual errors and improved traceability across our production lines. The team’s deep understanding of manufacturing needs sets them apart as a technology partner we can rely on.
We partnered with Delmon Solutions to deploy their warehouse management system along with industrial printers and scanners. The implementation was smooth, and the impact was immediate—our picking accuracy and dispatch speed have improved remarkably. Their hardware recommendations, especially CipherLab devices, were spot on for our high-volume environment.
Efficiency is critical in logistics, and Delmon Solutions has helped us achieve it. From handheld scanners to robust asset tracking software, their solutions have streamlined our hub operations and provided real-time visibility into shipments. We appreciate their proactive support and commitment to our success."
Why Choose the CipherLab 2565?
With lightning-fast measurement, portability, and seamless integration into your mobile workflows,
the CipherLab 2565 is your go-to solution for accurate, reliable, and hassle-free
dimensioning—saving time, space, and cost across every parcel.
